X-7 Compact monitoring node

Compact tilt, vibration and impact monitoring.

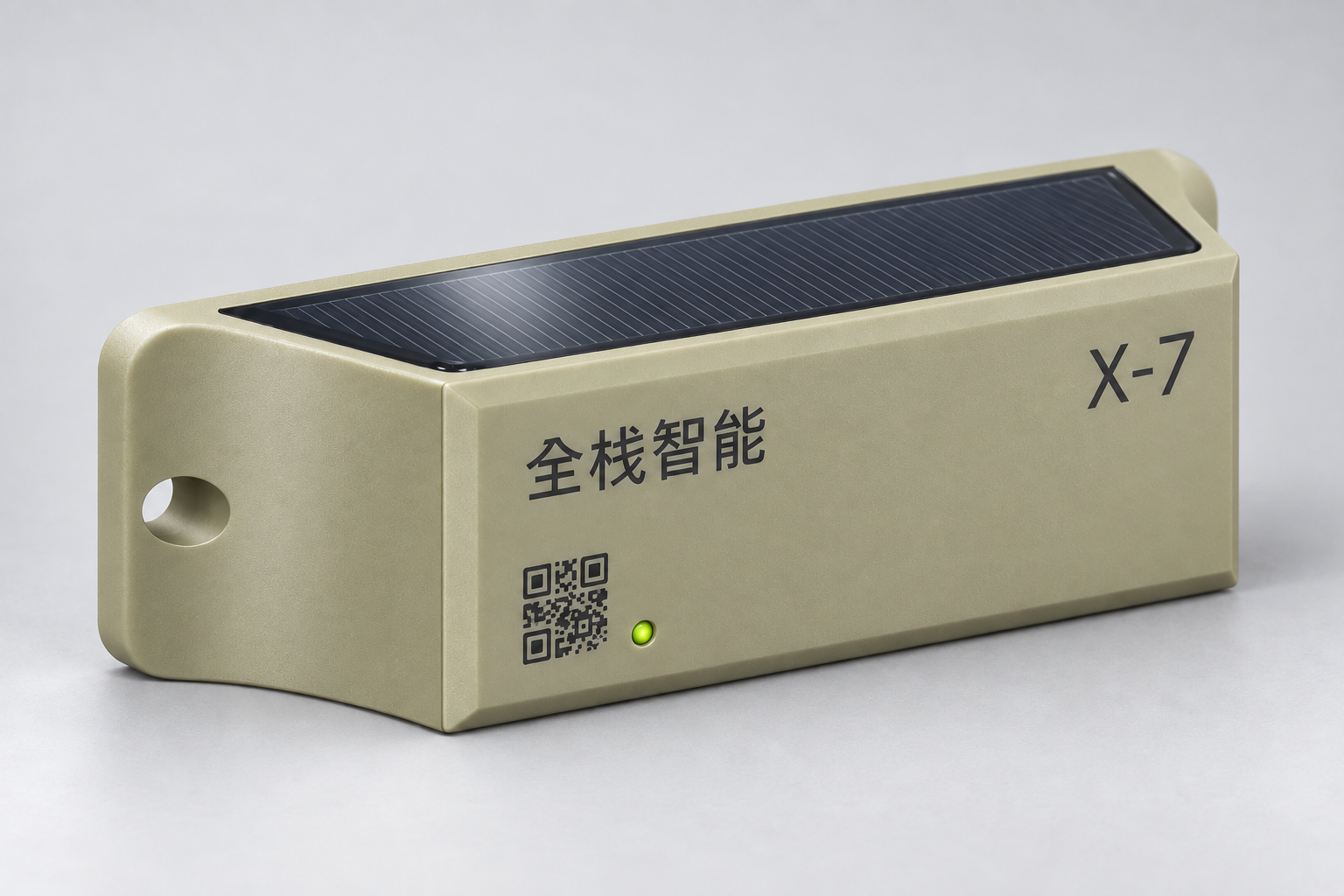

X-7 monitoring device
Compact dimensions
110 × 38 × 38 mm
Cellular
4G
Power
Solar-assisted

Compact installation at selected points

A compact node for selected points on bridges, barriers and fixed infrastructure.

Compact sensing, documented in China.

X-7 is a compact wireless tilt, vibration and impact monitoring node for selected points across bridges and distributed infrastructure. The base X-7 uses 4G; LoRa is available on X-7 Pro, not the base model.

What does the project evidence show?

At Dongdagang Bridge, X-7 sensing combines with separate video and warning equipment. At Shaba River Bridge, staff checked an abnormal-data event and recorded construction contact. These company records show deployment and follow-up, not automatic damage diagnosis.

What should we confirm for our bridge?

Agree monitoring points, measurement conditions, event settings, sampling and reporting needs, mounting, communication and power. Choose a data access route and a pilot acceptance plan. Cameras and warning devices are separate components.

Specifications

Compact dimensions
110 × 38 × 38 mm
Cellular
4G
Power
Solar-assisted

Confirm the hardware revision, measured quantity and test conditions before selecting a configuration.

X-7 key specifications
Monitoring
Monitored conditionsTilt, vibration and impact events; confirm output channels for the supplied revision
Tilt accuracyManual lists ±0.5°; confirm the supplied revision and test conditions
Device locationConfirm the location source and recorded fields
Power & environment
Power supplySolar-assisted charging + internal battery
Battery capacityConfirm the supplied revision; source documents list different capacities
Ingress protectionManufacturer-stated IP68; request the report applicable to the supplied unit
Operating temperatureConfirm the operating range and test evidence for the supplied unit
Connection
Wireless connectivity4G; LoRa available on X-7 Pro
Remote monitoringConfigurable reporting, event alerts and platform access

Check the event record before a field test.

Measurement

State the quantity, event duration and required output. Precise vibration velocity, structural dynamics and PPV need a separate instrument review.

Event behaviour

Agree the trigger, pre- and post-event window, reporting interval and behaviour during a connection loss.

Acceptance

Keep existing inspection arrangements during evaluation. Agree the baseline, reviewer and evidence needed to accept the test.

Set the evaluation scope

X-7 overview

X-7 product overview · 1 min 17 secClick to play · English

Field installation

See site assessment, installation and monitoring in the field.

Recorded in China. Some platform screens are shown in Chinese. Site configuration and available services vary by project.

Explore deployment examples

Installation & monitoring · 49 sec · English subtitles

Discuss your monitoring project

Share the asset, country and event. Include a measurement requirement if your team has one.
